>VISIC100SF air quality measuring device


      >VISIC100SF air quality measuring device


      >Краткие характеристики

      • Measured variables

        Visibility (K-value), CO, NO, NO2

      • Measuring range

        Visibility (K-value): 0 ... 15 km⁻¹

        CO: 0 ... 300 ppm

        NO: 0 ... 100 ppm

        NO2: 0 ... 5 ppm

      • Conformities

        ASTRA "Guideline - Ventilation of Road Tunnels" (2008)

        RABT 2006

        RVS 09.02.22

      • Посмотреть все характеристики

      Область применения

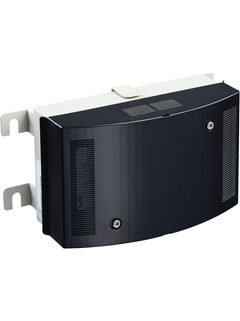

      The VISIC100SF tunnel sensor is an all-in-one solution for measuring visibility, CO, NO, and NO2 concentrations. The VISIC100SF is easy to mount, operate, and maintain. There is no need for alignment or parameter setting. With its IP6K9K enclosure rating, the VISIC100SF is able to withstand the harsh ambient conditions inside the tunnel, also tunnel washing operations. During the design phase, particular importance was placed on ensuring reliable operation and long maintenance intervals.

      • Ventilation control in tunnels

      • Measurement of visibility when the tunnel portal is shrouded in fog

      • Anywhere where air quality has to be measured and improved


      Device properties:

      • Visibility measurement according to the scattered light principle

      • CO and NO concentration measuring in accordance with EN 50545

      • Software developed in accordance with EN 61508 (SIL1)

      • IP 6K9K enclosure rating thanks to a rugged stainless-steel housing

      • Fog compensation through integrated heating (option)
