>GMS800 emission monitoring solution


      >GMS800 emission monitoring solution


      >Краткие характеристики

      • Measured variables

        CH4, CO, CO2, H2, H2O, He, N2O, NH3, NO, NO2, O2, SO2
        Hydrocarbons (e.g. C2H2), halogenated hydrocarbons (e.g. CH2Cl2) and other gases upon request

      • Ambient temperature range

        +5 °C ... +45 °C

      • Посмотреть все характеристики

      Область применения

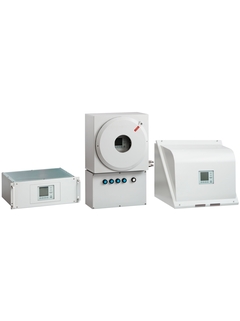

      The GMS800 is a product family of extractive gas analyzers which can measure more than 60 different gas components. The GMS800 is characterized by its modular design: 6 analyzing modules, one gas module, I/O modules and a control unit. Standardized 19” plug-in housings can be used for economical system integration. In harsh industrial environments, wall-mounted housings with approvals for Ex-zones according to ATEX are used.

      • Emission monitoring according to EN 15267 and process gas measurements, even in explosion-hazardous areas

      • Emission monitoring with very low concentrations

      • Measurement of sulfur compounds in process gases

      • Measurement of very low concentration in hydrogen or hydrocarbons


      Device properties:

      • 6 different analyzer modules

      • 4 different types of enclosures

      • Gas module with sample gas pump and/or control sensors

      • New enclosure type for easy and quick integration

      • Remote diagnosis via Ethernet with SOPAS ET software
