>MARSIC300 emission monitoring solution


      >MARSIC300 emission monitoring solution


      >Краткие характеристики

      • Measured variables

        CO2, SO2, NO, NO2, CO, NH3, H2O, CH4

      • Ambient temperature range

        0 °C ... +50 °C
        Type approved up to 45 °C

      • Conformities

        MARPOL Annex VI and NTC 2008 – MEPC.177(58)
        Guidelines for exhaust gas cleaning systems – MEPC.340(77)
        Guidelines for SCR reduction systems – MEPC.198(62)
        DNV Rules for Type Approvals (2012)
        IACS E10 and Rules of major classification societies

      • Посмотреть все характеристики

      Область применения

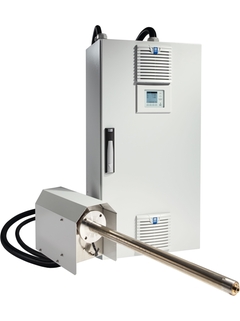

      The MARSIC300 ship emissions measuring device is a customized solution for reliably measuring emissions on ships according to MARPOL Annex VI and IMO MEPC. The MARSIC300 is type-approved for this application by well-known classification organizations. The MARSIC300 measures both SOx and CO2 upstream and downstream of the scrubbers, and NOx upstream and downstream of SCR plants. The measuring device impresses with extremely low maintenance costs and modules that are easy to replace.

      • Reliable emission monitoring on ships

      • Accurate DeNOx and DeSOx measurements for ship engines

      • Cost-efficient process monitoring of the scrubber and catalytic converters


      Device properties:

      • Rugged design and high level of measurement accuracy

      • Type-approved by well-known classification organizations in accordance with MARPOL Annex VI and IMO MEPC

      • Measuring ranges adapted to low and high concentrations of SO2 and NOx

      • Up to 8 measuring components at the same time: SO2, CO2, CO, NO, NO2, NH3, H2O, CH4
