>MCS200HW emission monitoring solution


      >MCS200HW emission monitoring solution


      >Краткие характеристики

      • Measured variables

        CH4, CO, CO2, Corg, HCl, H2O, NH3, NO, NO2, N2O, O2, SO2

      • Ambient temperature range

        +5 °C ... +50 °C

      • Process temperature

        ≤ +550 °C

      • Посмотреть все характеристики

      Область применения

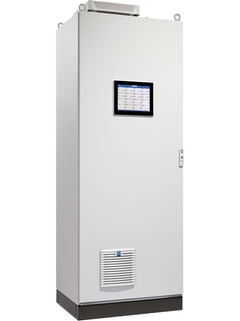

      The MCS200HW is a analyzer system for continuous monitoring of up to 10 IR measurement components in flue gases. All parts which touch media are heated above the dew point and therefore protected from corrosion. Internal reference point monitoring allows for a quick check of the measured values without test gases. The web display and the task assistant integrated in the software makes operation very easy. MCS200HW Ex allows reliable emission measurement even in explosion-hazardous areas.

      • Emission monitoring for waste incineration plants as well as power plants and plants with co-incineration, e.g. cement plants

      • Measurement of nitrogen oxides in nitric acid plants


      Device properties:

      • Measurement of up to 10 IR components plus O2 and TOC

      • Wear-free gas distribution through ejector pumps

      • Reference point monitoring with internal calibration cells

      • Web server for platform-independent device control

      • Use of dry test gases for HCl and NH3

      • Classification for ATEX Zone 2, IIC T3 gb
