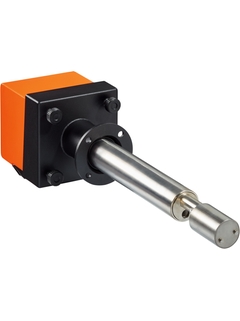

>DUSTHUNTER SP100 particle measuring device


      >DUSTHUNTER SP100 particle measuring device


      >Краткие характеристики

      • Measured variables

        Scattered light intensity, dust concentration (after gravimetric comparison measurement)

      • Process temperature

        Standard version DHSP-T2xx:
        –40 °C ... +220 °C
        High temperature version DHSP-T2xx:
        –40 °C ... +400 °C

      • Device version

        Ex-3K
        Ex-2K
        Device version for Ex zone 2/22 or 1/21

      • Посмотреть все характеристики

      Область применения

      The DUSTHUNTER SP100 is a type-approved measuring device with probe for very low to medium dust concentrations. Installation from one side makes it ideal for thick-walled or double-walled ducts. The measurement is based on the forward scattering of light. An automated check of the zero and reference point as well as a contamination check are on board in the device.

      • Emissions monitoring at power plants and waste incineration plants

      • Monitoring of filter systems

      • Measurements in exhaust gas or exhaust ventilation ducts


      Device properties:

      • Installation from one side

      • For very low to medium dust concentrations

      • Automated check of zero and reference point

      • Hastelloy measuring probe available for corrosive gases

      • For small to medium duct diameters

      • Device version for explosive zone 2/22 or 1/21
