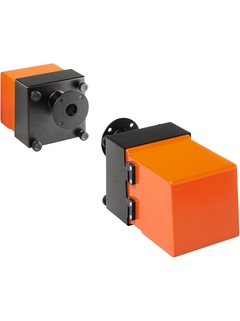

>DUSTHUNTER T100 particle measuring device
-
Measured variables
Transmittance, opacity, relative opacity, extinction, dust concentration
-
Process temperature
–40 °C ... +600 °C
-
Measuring range
Transmittance: 100 ... 80 % / 100 ... 0 %
Opacity: 0 ... 20 % / 0 ... 100 %
Relative opacity: 0 ... 20 % / 0 ... 100 %
Extinction: 0 ... 0.1 / 0 ... 2
Dust concentration: 0 ... 200 mg/m³ / 0 ... 10,000 mg/m³
The measurement depends on measuring distance and dust properties
- Посмотреть все характеристики
Область применения
The DUSTHUNTER T100 is a measuring device for dust at medium to high concentrations. Basic measuring value is transmittance. Opacity and extinction can be calculated and displayed as well as the dust concentration after gravimetric calibration. The device has an integrated contamination check. The DUSTHUNTER T100 is approved according to EN 15267.
Emissions monitoring at power plants and waste incineration plants
Monitoring of filter systems
Monitoring of dust load in factory halls
Control of fresh air and exhaust air units
Device properties:
For medium to high dust concentrations
On-board contamination check
Automated thorough check of zero and reference point
For small to large measuring distances
