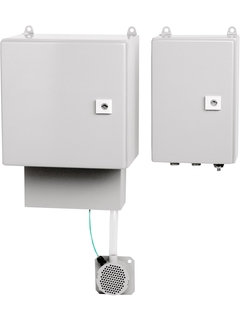

>VICOTEC450 visual range measuring device
-
Measured variables
Visibility (K-value)
-
Measuring range
Visibility (K-value): 0 ... 15 km⁻¹ / 0 ... 5,000 km⁻¹
Temperature: -50 ... +250 °C -
Ambient temperature range
–30 °C ... +55 °C
- Посмотреть все характеристики
Область применения
The VICOTEC450 draws air from inside the tunnel and determines the visibility with a high level of accuracy using scattered light technology. It regularly and automatically carries out a functional test including the function of the laser and receiver as well as the contamination of the optics. Maintenance requirements for cleaning and filter exchange are automatically registered and signaled in time by the VICOTEC450 due to contamination check and measurement of the air flow rate (optional).
Visibility monitoring in tunnels for ventilation control
Smoke detection in tunnels
Device properties:
Regular functional test with contamination measurement
Linearity test can be carried out with filter set
Internal purge air for long intervals between cleaning
Maintenance signal (filter and cleaning)
Logbook function
Extendable with various interfaces or I/O modules
