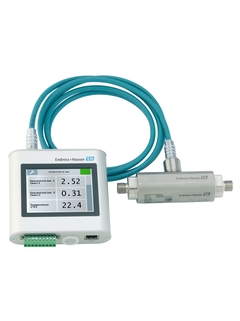

>Teqwave F – Ultrasonic concentration meter
-
Диапазон измерения
Concentration According to concentration app data sheet, maximum 0 to 100 %
Sound velocity 600 to 2000 m/s
Temperature maximum 0 to +100 °C (32 to +212 °F)
Acoustic Density 0.7 to 1.5 g/cm³ -
Макс. погрешность измерения
Плотность: ±0,01 г/см³
Температура: ±0,5K
Скорость звука: 2 м/с -
Диапазон температур продукта
0 ... 100 °C
-
Рабочая температура
0 to 100 °C (32 to 212 °F)
-
Макс. рабочее давление
макс. 16 бар при 20 °C (232 psi при 68 °F)
-
Рабочее давление
max. 16 bar at 20 °C (232 psi at 68 °F)
-
Смачиваемые материалы
Stainless steel 1.4571 (316 Ti)
- Посмотреть все характеристики
Область применения
Teqwave F is ideal for real-time liquid analysis in pipes, particularly in skids. Equipment manufacturers and end customers value the inline device for its accurate in situ concentration measurement. Teqwave reduces the operational expenditure by monitoring various measuring parameters at once. Match your Teqwave transmitter perfectly to your production needs: You can flexibly define and extend your application range.
The acoustic waveguide measures precisely and reliably, even the smallest changes are detected
Continuous concentration measurement of liquids in pipes
Device properties
Nominal diameter: DN 8 to 25 (3/8 to 1")
Full-bore design without pressure loss
Industry-compliant, easy installation via DIN rail
3.5" TFT color touch screen or LED indication
4-20 mA, Modbus TCP
