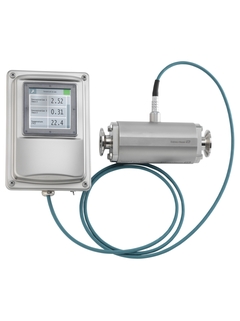

>Teqwave H – Ultrasonic concentration meter
-
Диапазон измерения
Concentration According to concentration app data sheet, maximum 0 to 100 %
Sound velocity 600 to 2000 m/s
Temperature, maximum 0 to +100 °C (32 to +212 °F)
Acoustic density 0.7 to 1.5 g/cm³ -
Макс. погрешность измерения
Acoustic density: ±0.01g/cm³
Temperature: ±0.5K
Sound velocity: +-2m/s -
Диапазон температур продукта
0 to 120°C (32 to 248 °F)
-
Рабочая температура
0 to 120°C (32 to 248 °F)
-
Макс. рабочее давление
max. 16 bar at 20 °C (232 psi at 68 °F)
-
Рабочее давление
max. 16 bar at 20 °C (232 psi at 68 °F)
-
Смачиваемые материалы
Stainless steel1.4404 (316L)
- Посмотреть все характеристики
Область применения
Teqwave H is ideal for real-time liquid analysis in hygienic applications like spirits and soft drink production. End customers and equipment manufacturers value its highly accurate in situ concentration measurement and hygienic design. Teqwave reduces the operational expenditure by monitoring various measuring parameters at once. Match your Teqwave transmitter perfectly to your production needs by flexible definition and extension of your application range.
The acoustic waveguide measures precisely and reliably, even the smallest changes are detected
Continuous quality monitoring of beverages and in cleaning processes
Device properties
Nominal diameter: DN 25 (1")
Sensor housing made of stainless steel (3-A, EHEDG)
Accurate and independent of flow profile
Industry-compliant, easy installation via DIN rail and pipe mounting set
3.5" TFT color touch screen or LED indication
4-20 mA, Modbus TCP
