>iTHERM ModuLine TM411Hygienic modular thermometer
-
Погрешность
класс A согласно ГОСТ Р МЭК 60751
класс AA согласно ГОСТ Р МЭК 60751 -
Время отклика
в зависимости от конфигурации
QuickSens: t90 = 1,5 с
StrongSens: t90 = 9,5 с -
Макс. рабочее давление (статическое)
при 20 °C: 40 бар (580 psi)
-
Диапазон рабочих температур
PT100:
-200 °C ... 600 °C
(-328 °F ... 1112 °F)
StrongSens:
-50 °C ... 500 °C
(-58 °F ... 932 °F)
QuickSens:
-50 °C ... 200 °C
(-58 °F ... 392 °F)
- Посмотреть все характеристики
Область применения

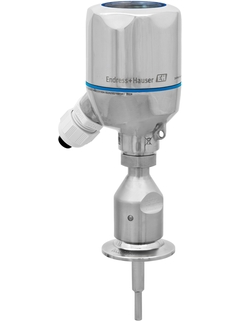

The modular sanitary thermometer iTHERM TM411 with digital display delivers highly accurate, reliable and fast temperature measurements in process lines, vessels, tanks, fermenters and more. The high-performance device is designed for the strictly regulated food and life sciences industries. Configure your hygienic instruments from a selection of thin film RTDs with QuickSens or StrongSens technology or 2x Pt100 wire wound temperature sensors, smart transmitters and hygienic process connections.
Designed for use in hygienic and aseptic applications in food, beverage and life sciences
Measuring range: –200 to 600 °C (-28 to 1 112 °F)
Pressure range up to 40 bar (580 psi)
Protection class: up to IP69K
Remote parametrization with secure Bluetooth® temperature transmitters
International approvals: Certified for use in hazardous areas, explosion protection as per ATEX/IECEx, CSA, FM, EAC Ex, JPN Ex, NEPSI; Hygiene standards according to 3-A, EHEDG, ASME BPE, FDA, TSE Certificate of Suitability
