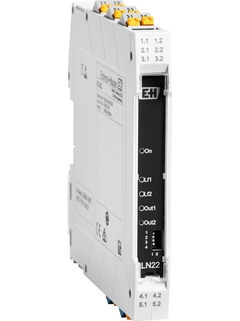

>RLN22 NAMUR isolating amplifier


      >RLN22 NAMUR isolating amplifier


      >Краткие характеристики

      • Вход

        NAMUR
        blocking: < 1,2 mA
        conducting: > 2,1 mA

      • Выход

        relay contact

      • Питание

        24 V DC

      • Посмотреть все характеристики

      Область применения

      The RLN22 is a compact 1- or 2-channel, 24 VDC isolating amplifier with relay signal output. It is designed to safely operate e.g. proximity sensors or point level switches such as the Liquiphant FTL51B (NAMUR) as per IEC 60947-5-6.
      The DC interface monitors line faults such as breaks or short-circuits of sensors or mechanical switching contacts. The device is suited for use in hazardous areas and safety instrumented systems up to SIL 2 in accordance with IEC 61508.

      • Isolating amplifier for the transmission of binary switching signals

      • Input for proximity sensors, open contacts or contacts with resistive coupling elements

      • Galvanic isolation (3-way)

      • Line fault monitoring of input circuits or mechanical switching contacts

      • Group error message via DIN rail bus connector

      • Output-side relay contacts, direction of action (operating or quiescent current behavior) via DIP switch selection

      • Ambient temperature range: –40 to 60 °C (–40 to 140 °F)
