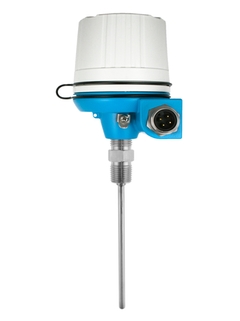

>TH11Modular RTD thermometer, US style
-
Погрешность
класс A согласно IEC 60751
класс B согласно IEC 60751 -
Время отклика
63% rt = 2,0 с
-
Макс. рабочее давление (статическое)
при 20 °C: 250 бар (3626 psi)
Зависит от конфигурации -
Диапазон рабочих температур
PT 100:
-200 °C ...600 °C
-328 °F ...1112 °F) -
Максимальная длина по запросу
до 2439 мм (96'')
Прочее по запросу
- Посмотреть все характеристики
Область применения
The high modular thermometer is used for several applications in almost all industries. Examples are heat exchangers, dryers, process reactors , reactor stations, etc. With different head transmitter it's a complete unit ready for use with enhanced measurement accuracy and reliability. It also enables very fast response times, due to direct contact measurement without thermowell. A variety of process connections and dimensions offer flexible application possibilities.
The TH11 temperature sensors are RTD's designed for use in the process industry or factory automation type of environment. They are made up of a measurement probe with a RTD, insulation and sheath.
Among other applications the sensors can be used on:
Heat exchangers
Power & recovery areas
Carbon regeneration furnaces
Dryers
Flue Gas
Compressor stations
Process reactors
