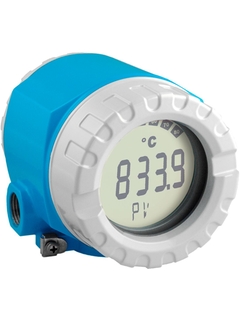

>iTEMP TMT162 temperature transmitter


      >iTEMP TMT162 temperature transmitter


      >Краткие характеристики

      • Погрешность

        (Pt100, -50...200 °C) <= 0,15 K (HART)
        (Pt100, -58...392 °F) <= 0,3 °F (HART)
        (Pt100) <= 0,1 K (FF, PA)
        (Pt100) <= 0,18 °F (FF, PA)

      • Посмотреть все характеристики

      Область применения

      Unsurpassed reliability, accuracy and long-term stability in critical processes. The remote configurable transmitter transfers and monitors converted signals from RTD sensors and thermocouples as well as from resistance and voltage signals using selectively HART®, FOUNDATION Fieldbus™-, PROFIBUS® PA-communication. It visualizes the signals on its own backlit display. A field housing allows a direct connection in harsh process areas as well as in hygienic applications as option.

      • Universal input usable for resistance thermometer (RTD), thermocouple (TC), resistance thermometer (Ω), voltage transmitters (mV)

      • HART® protocol for converting various input signals to a scalable 4 to 20 mA analog output signal. Operating the transmitter using handheld terminals Field Xpert SFX350/370, field communicator 475 or remotely via PC

      • FOUNDATION Fieldbus™ ITK 6.1.2

      • PROFIBUS® PA Profile 3.02

      • Optional: stainless steel housing for hygienic or Ex d application
