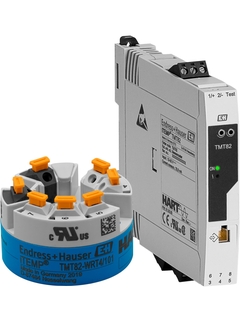

>iTEMP TMT82 temperature transmitter


      >iTEMP TMT82 temperature transmitter


      >Краткие характеристики

      • Погрешность

        (Pt100) <= 0,1K (цифровая форма) + 0,03% (установленный диапазон)

      • Посмотреть все характеристики

      Область применения

      The iTEMP TMT82 is a highly reliable, accurate and long-term stable temperature transmitter for industrial processes requiring high availability.
      The versatile 2-channel device converts universal sensor inputs such as thermocouples or RTD into stable, scalable 4 to 20 mA output signals and HART® communication. With its built-in smart sensor monitoring capability and diagnostic status information according to NAMUR NE 107, the SIL 2, SC3 certified transmitter increases process safety and uptime.

      • Safe operation in hazardous areas; International approvals such as FM, CSA, ATEX, EAC, NEPSI, IECEx, DNV GL

      • 2-channel universal signal inputs: RTD, thermocouple, resistance (Ω) and voltage transmitters (mV), HART® 7 protocol

      • Suited for use in marine applications

      • Installation in explosion proof field housings;

      • Protection class up to IP 68

      • Fits in flat-face terminal heads as per DIN EN 50446

      • Cabinet or DIN rail mounting; width: 17.5 mm
