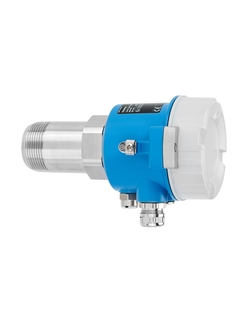

>Microwave barrier transmitterSoliwave FQR57
-
Рабочая температура
Бесконтактный монтаж: любой
Внутри установки:
-40 °C...+70 °C
(-40 °F...+158 °F)
С ВТ-адаптером:
до +450 °C (+842 °F) -
Рабочее давление абс. / макс. предел избыточного давления
Бесконтактный монтаж: любой
Внутри установки:
0,5...6,8 бар
(7,2 ... 99 psi) абс.
С HD-адаптером:
до +21 бар (+305 psi) абс. -
Мин. плотность измеряемого продукта
Доля твердых частиц: > 10 г/л
- Посмотреть все характеристики
Область применения
The Soliwave microwave barrier uses a non-contact procedure for detection of point levels and bulk flow (flow / no flow, trend). The device is also suitable for detecting and counting objects, detection of deposits as well as monitoring of filling processes and material transfer points. It can be installed in containers, conduits, hoppers, filling stations, shafts, filters or on free fall shafts. It is possible to take a measurement through non-metallic container materials from the outside.
Non-contact (wear- and maintenance-free) limit detection (min/max) and flow monitoring (flow/no flow, trend) for bulk solids.
Detecting, counting and positioning of objects
Detection and analysis of deposits and contamination in filters
Monitoring of filling processes
Monitoring of material transfer points
For high temperature applications up to 450°C (+842°F)
For high pressure applications up to 20bar (+290psi)
International explosion protection certificates
