>Ultrasonic measurementTime-of-FlightProsonic FDU90
-
Погрешность
+/- 2мм + 0.17% от значения измерения
-
Рабочая температура
-40 °C ... 80 °C
-
Рабочее давление абс. / макс. предел избыточного давления
0.7 бар ... 4 бар абс
-
Макс. значение измерения
Liquids: 3 m (9.8 ft),
Solids: 1.2 m (3.9 ft) -
Смачиваемые части
PVDF (IP68 / NEMA6P)
- Посмотреть все характеристики
Область применения

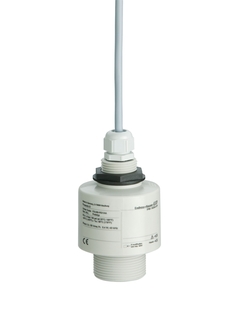

The FDU90 ultrasonic sensor for continuous, non-contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials. But also for flow measurement in open channels and measuring weirs. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Suited for explosion hazardous areas. Maximum measuring range in liquids 3m (9.8ft), solids 1.2m (3.9ft).
Sensor for continuous, non-contact level measurement of fluids and bulk materials in silos, on belts, stockpiles and in crushers. Also flow measurement in open channels and at weirs. Typically used in measurements in low structural heights.
Process connection: Thread
Temperature: -40 to +80°C (-40 to +176°F)
Pressure: +0.7 to +4bar (+10 to +58psi)
Maximum measuring range: Liquids 3m (9.8ft), solids 1.2m (3.9ft)
Blocking distance: 0.07m (0.23ft)
International explosion protection certificates
